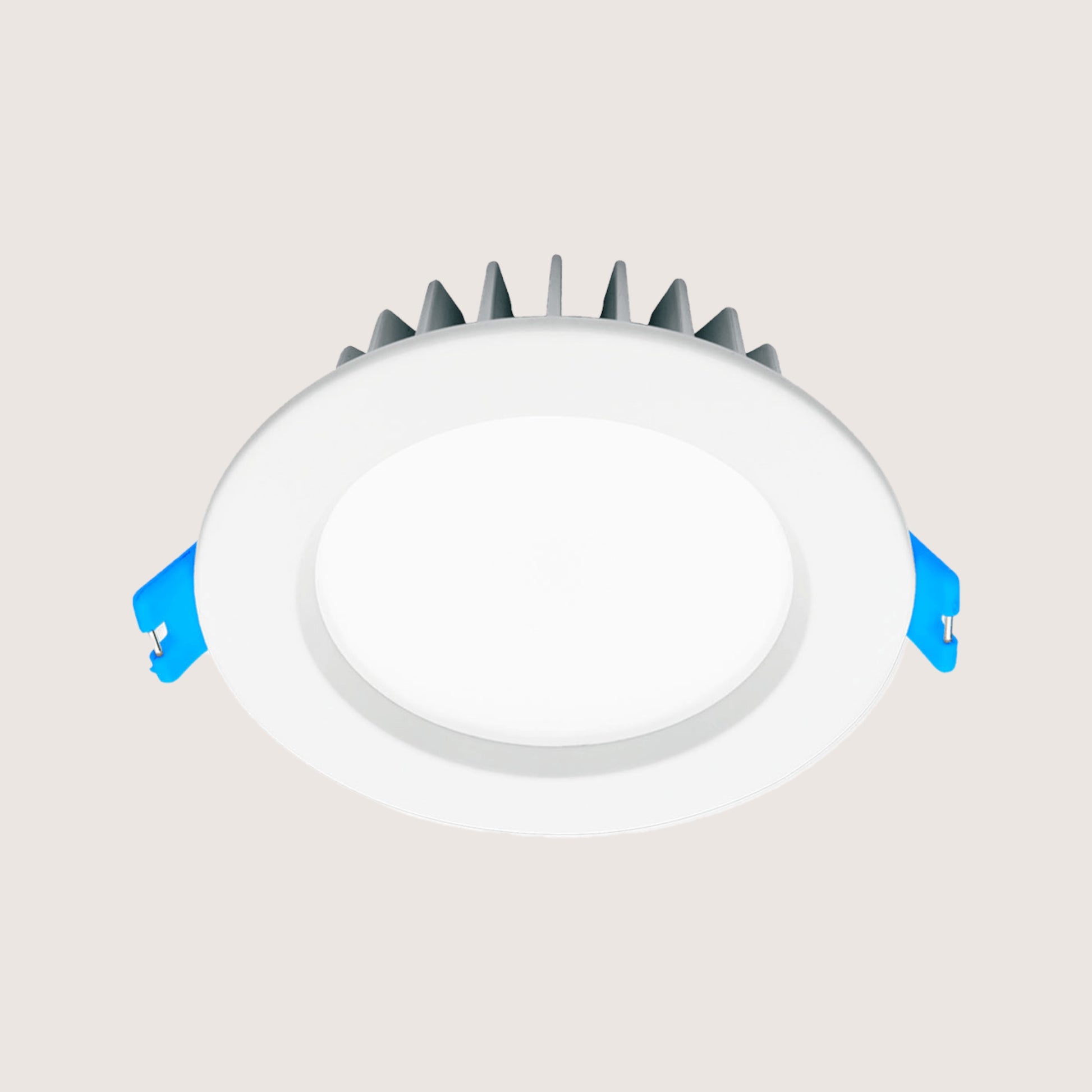

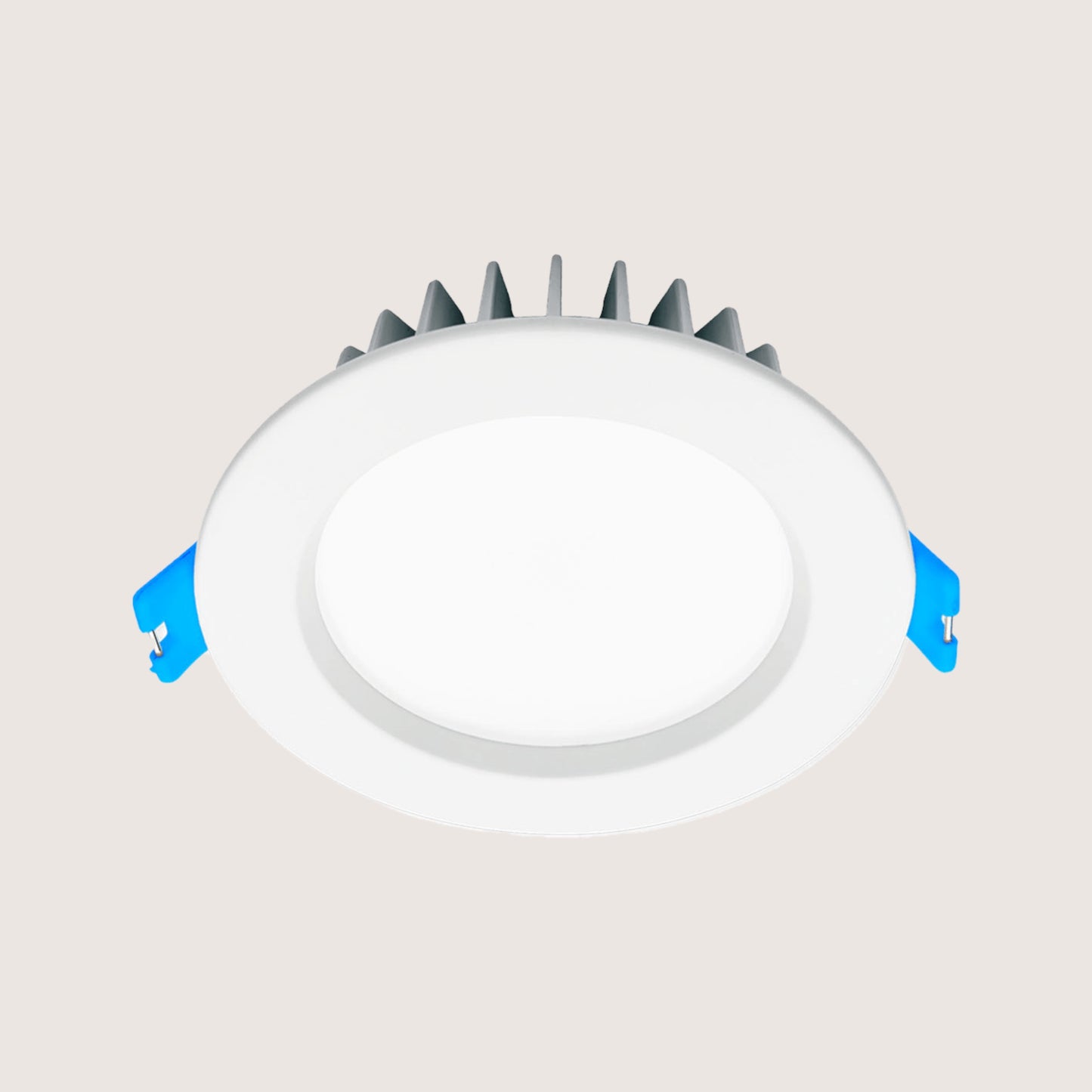

Residential LED Downlight — 90mm Cut-Out

A versatile recessed LED downlight built for whole-home installation — kitchens, living areas, bedrooms, hallways and bathrooms — where the priority is consistent quality light at a sensible price. The 90mm cut-out is the standard residential downlight size in New Zealand, making this an easy specification for new builds and a straightforward replacement for existing fittings.

Selectable colour temperature (3000K warm, 4000K neutral, or 5700K cool) via DIP switch at installation lets the same downlight do different jobs in different rooms — warmer in living areas and bedrooms, cooler in kitchens and workspaces. Multiple dimming protocols supported: standard trailing-edge wall dimmers, 1–10V analogue, DALI, and Casambi wireless — covering everything from a basic residential install to a fully integrated smart home.

The die-cast aluminium body with powder-coated finish offers durability beyond plastic-bodied alternatives at this price point. Quick-connect plug between driver and fitting, with extra-large terminals in the driver, makes installation straightforward for electricians. Flex and plug included.

Specifications: 10W LED, 230V. Selectable colour temperature (3000K / 4000K / 5700K via DIP switch). 100° beam angle, 850 lumens, CRI >90. IP44 rated, IC-F rated, double insulated. Die-cast aluminium body with powder-coated finish, opal acrylic diffuser. AcTEC Triac dimmable LED driver included (coverable). Compatible with 1–10V analogue, DALI and Casambi dimming systems. Quick-connect plug, flex and plug included. 50,000-hour LED lifespan @ L70, Ta 25°C. Operating temperature −20°C to +40°C. 5-year warranty.

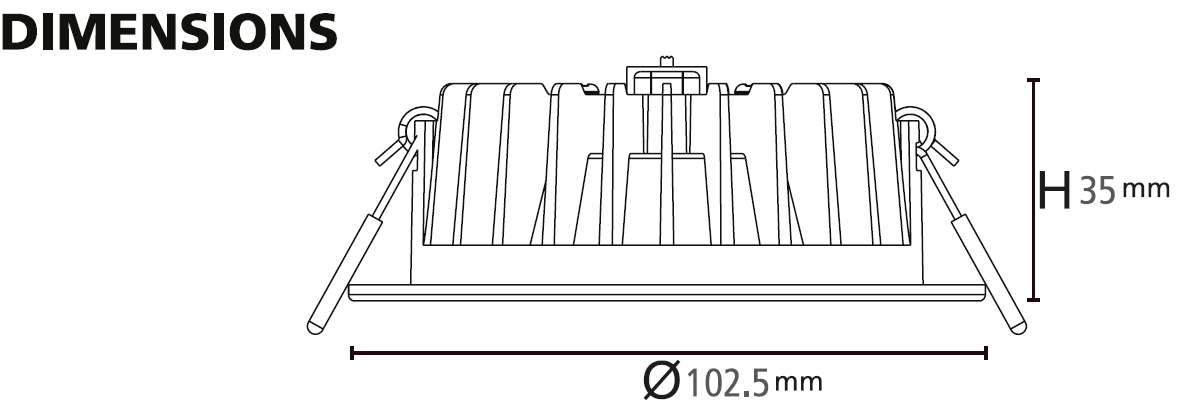

Dimensions: 102.5mm fitting diameter × 35mm height. 90mm cut-out.

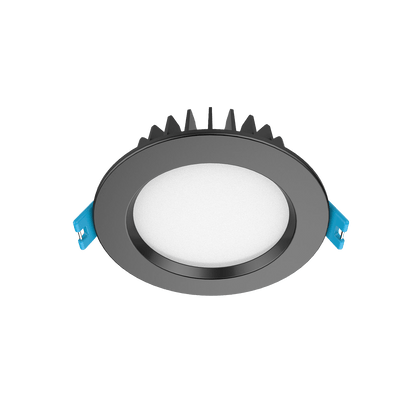

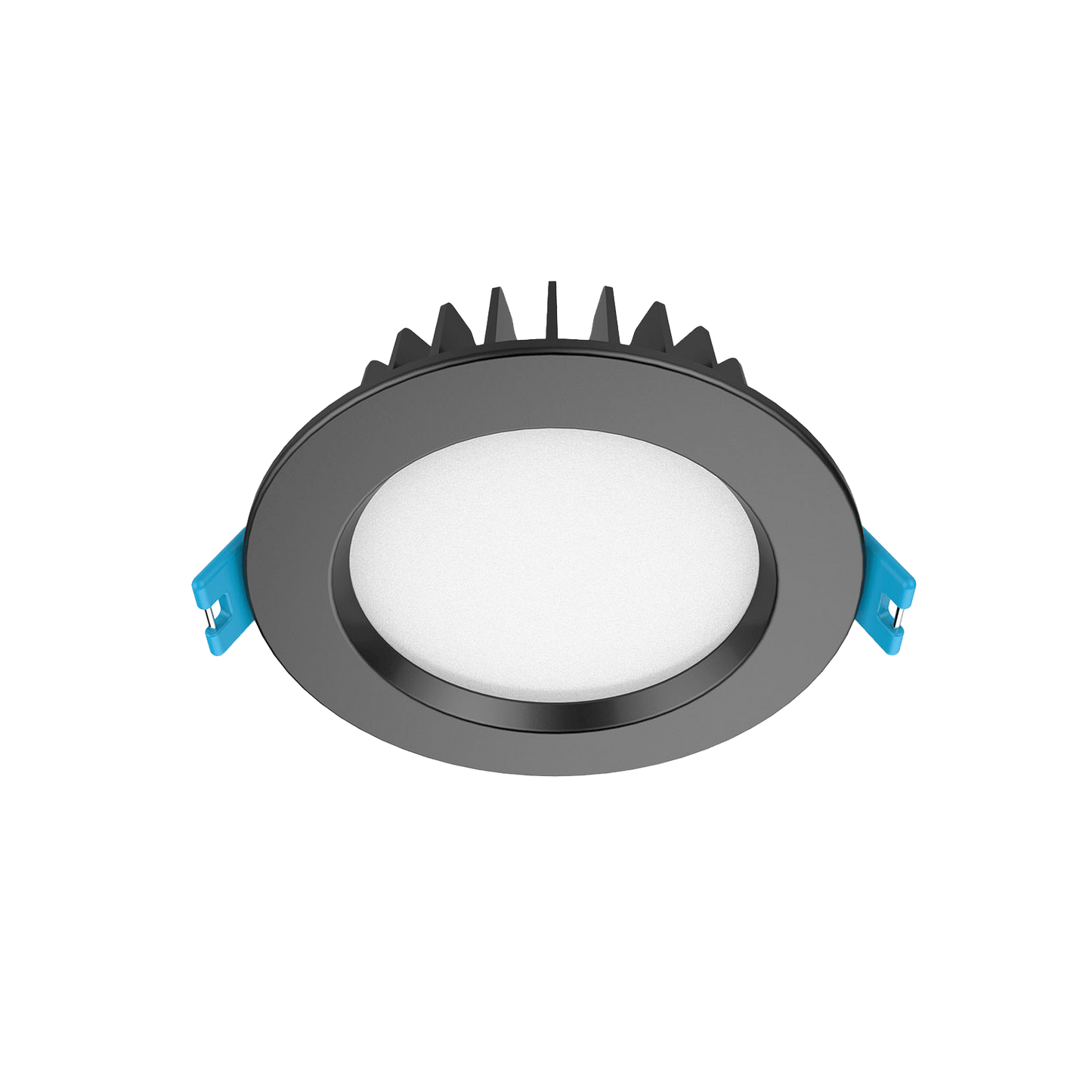

Available in: White, Black.

Free shipping NZ-wide.
