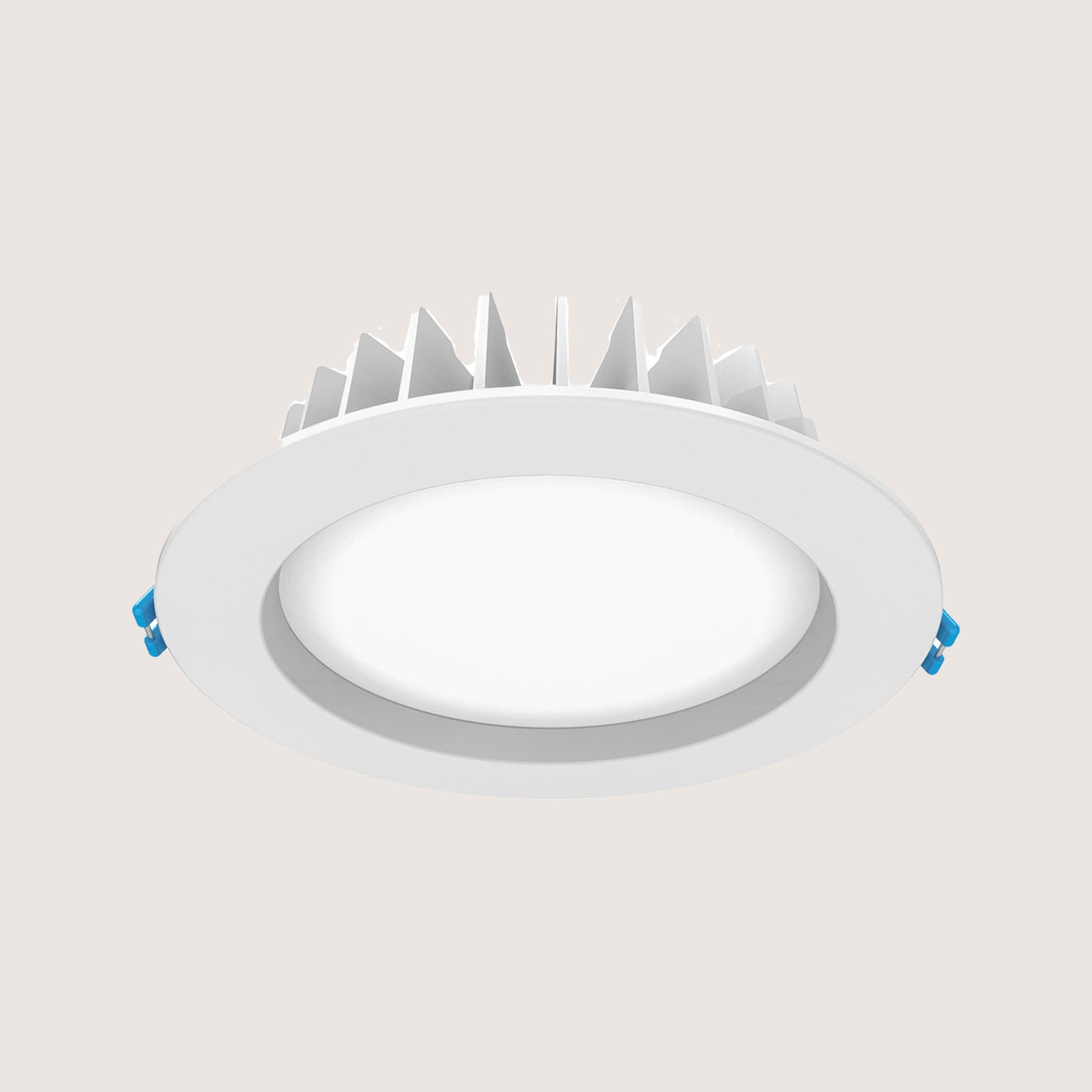

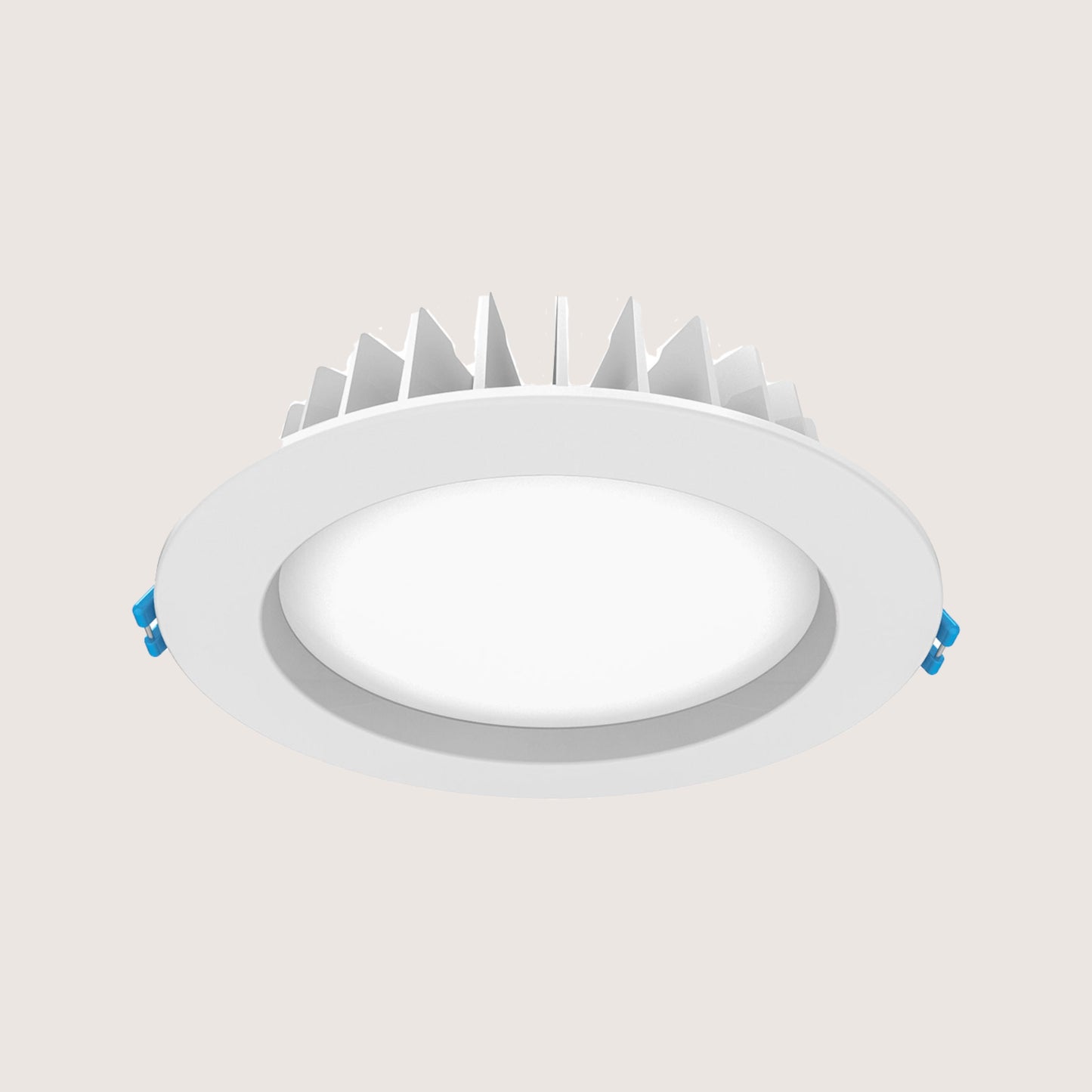

Residential 150 LED Downlight — 100mm / 120mm / 140mm Cut-Out

A larger-format recessed LED downlight available in three cut-out sizes — purpose-built for renovation work where existing ceiling holes from older fittings don't match modern standard sizes. Rather than re-cutting the ceiling or living with a visibly mismatched fitting, this range fits cleanly into 100mm, 120mm or 140mm existing apertures.

Useful in renovation contexts where downlights from previous decades have left non-standard holes, in commercial fit-outs replacing older fluorescent or halogen fittings, and in any installation where larger-format downlights suit the ceiling proportions and light output requirements better than standard 90mm fittings.

Selectable colour temperature (3000K warm, 4000K neutral, or 5000K cool) via DIP switch at installation. Multiple dimming protocols supported: standard trailing-edge wall dimmers, 1–10V analogue, DALI, and Casambi wireless. The wider 100° beam angle provides more even ceiling coverage than narrower beam fittings, suiting living areas, larger bedrooms and commercial spaces.

Choose the cut-out size that matches the existing hole or planned ceiling preparation:

•       100mm cut-out (120mm fitting diameter, 11W, 1100 lumens)

•       120mm cut-out (150mm fitting diameter, 12W, 1250 lumens)

•       140mm cut-out (165mm fitting diameter, 15W, 1700 lumens)

Specifications: Tri-colour selectable (3000K / 4000K / 5000K via DIP switch). 230V, 100° beam angle, CRI >90. IP44 rated, IC-F rated, double insulated. Die-cast aluminium body with powder-coated finish, opal acrylic diffuser. AcTEC Triac dimmable LED driver included (coverable). Compatible with 1–10V analogue, DALI and Casambi dimming. Power factor 0.95. Flex and plug included. 50,000-hour LED lifespan @ L70 B10, Ta 25°C. Operating temperature −20°C to +40°C. 5-year warranty.

Dimensions: Vary by variant — see size list above. Heights: 100mm cut-out (39mm), 120mm cut-out (35mm), 140mm cut-out (48mm).

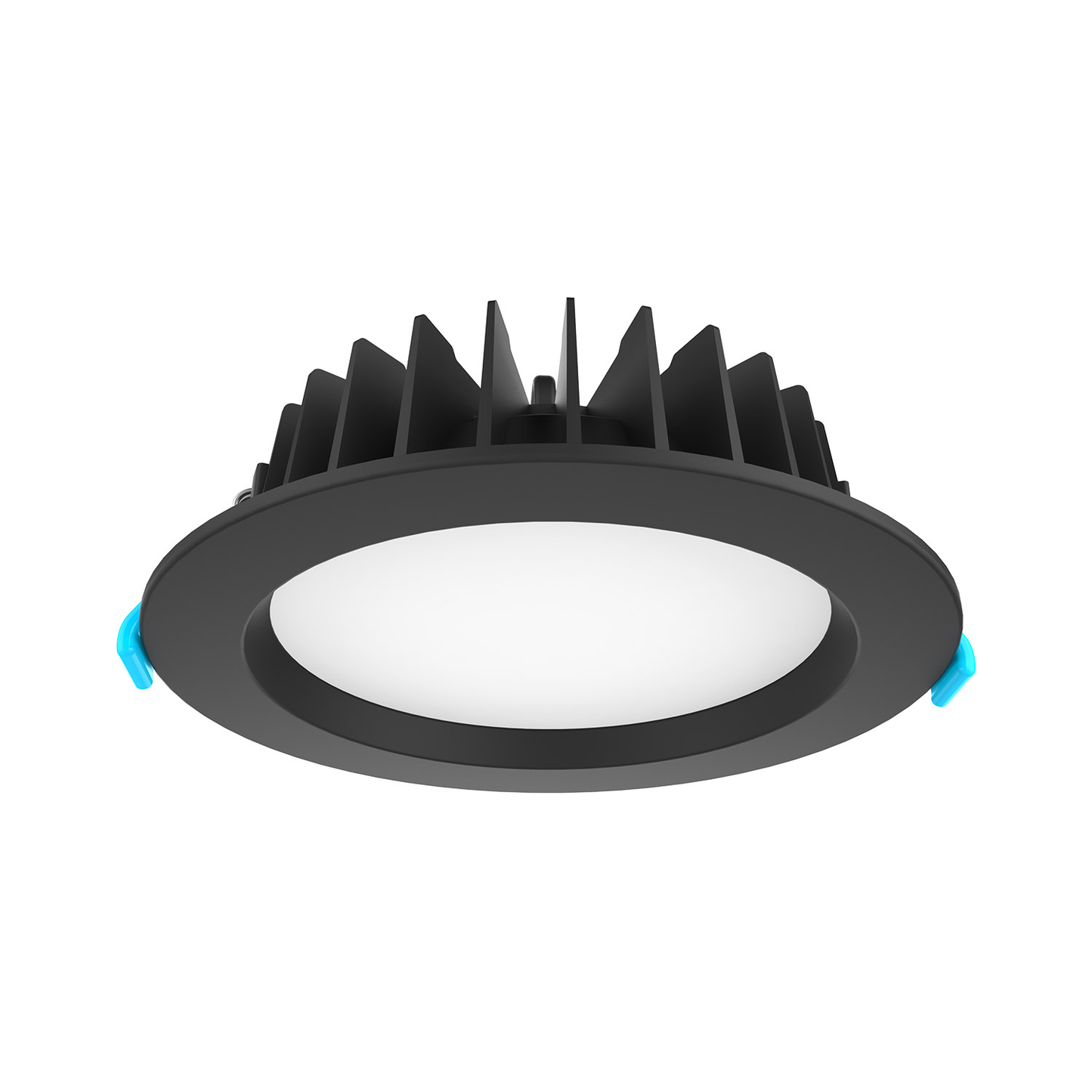

Available in: White, Black.
