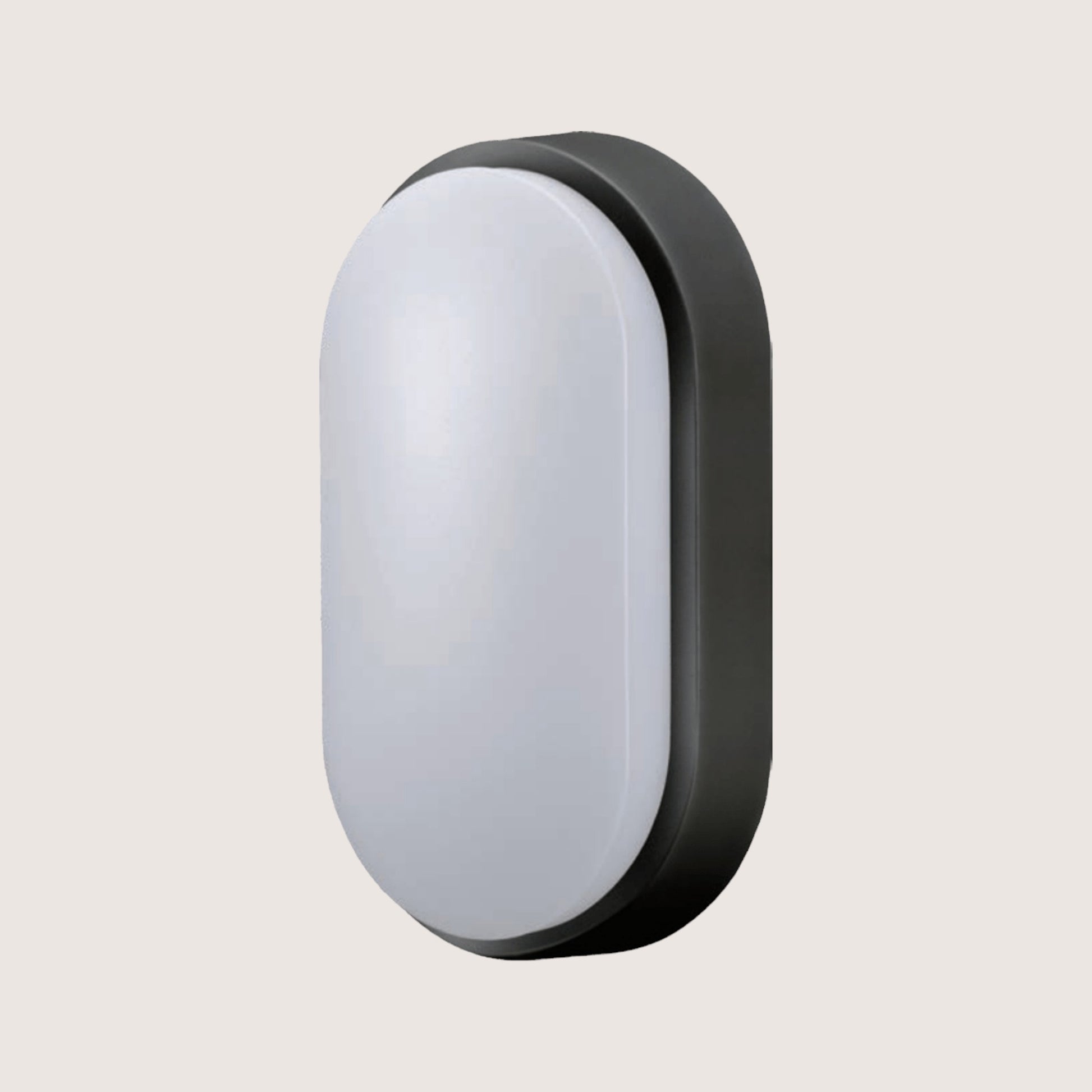

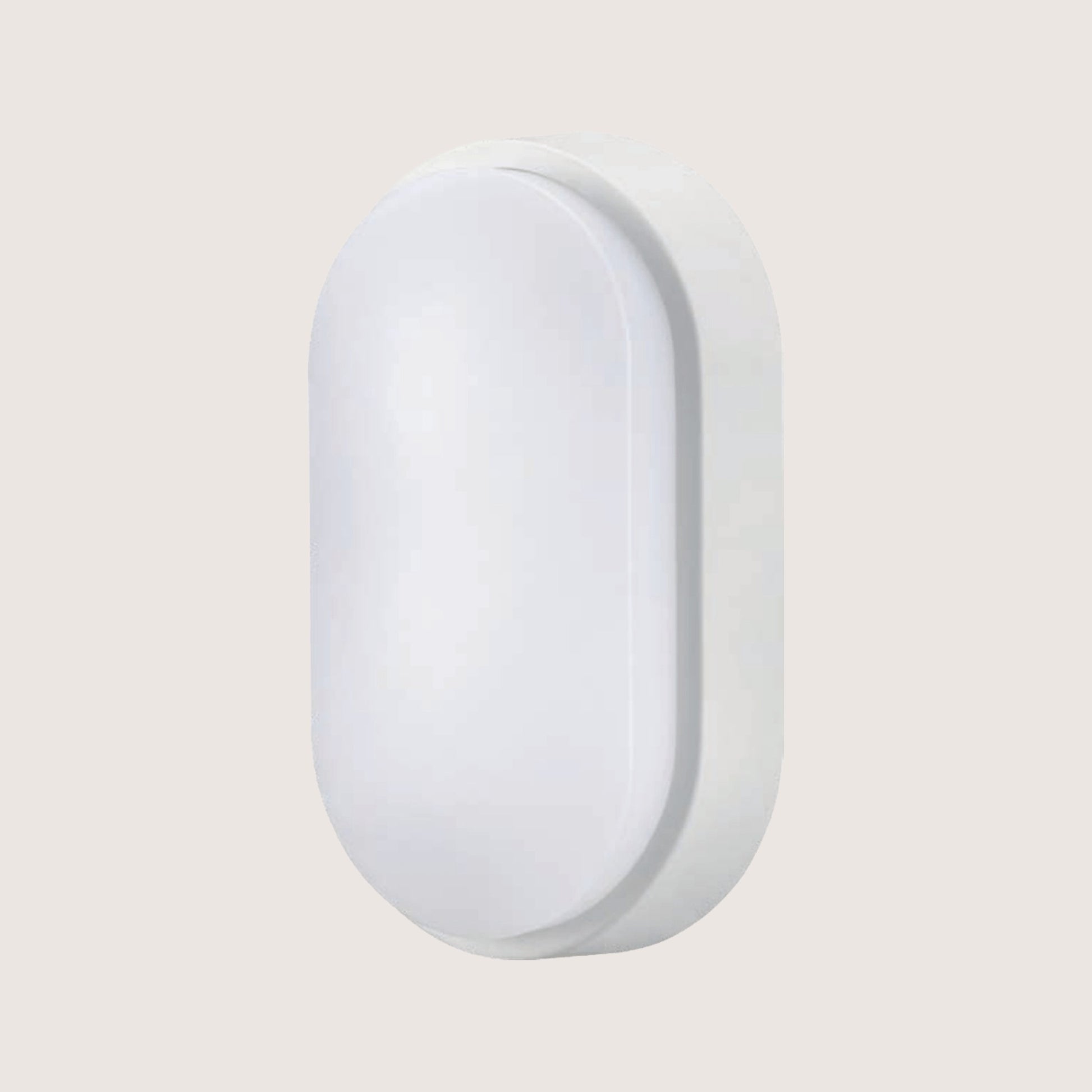

Oval B IP65 LED Bulkhead — Vertical or Horizontal

An IP65 oval-form bulkhead with an interchangeable white or black frame — supplied with both frames in the box, allowing the installer or homeowner to switch between finishes without ordering a different SKU. Useful for projects where finish decisions might change late, or where the same base fitting needs to work across different exterior colour schemes.

Available in two orientations to suit different installation positions:

•       Vertical (120mm wide × 210mm tall) — 1,400 lumens, 110° beam angle. Suits beside-door positions, narrow wall sections.

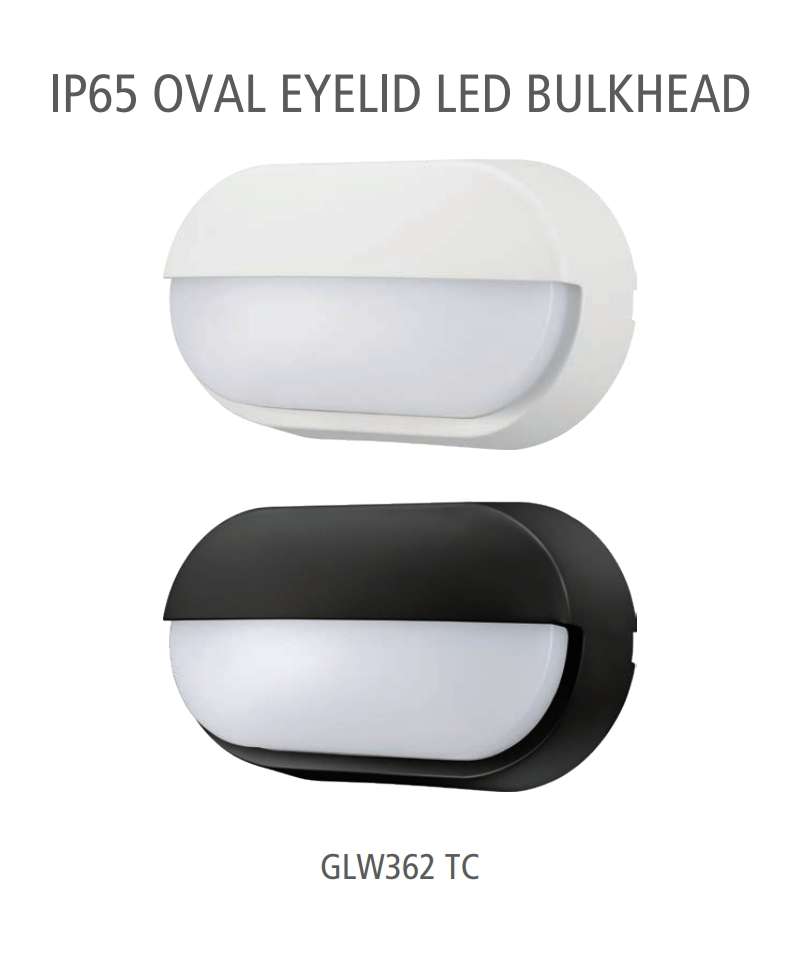

•       Horizontal (210mm long × 120mm tall) — 700 lumens, 100° beam angle. Suits over-door positions, wider wall sections, soffit applications.

Note that the vertical orientation produces double the lumen output of the horizontal — worth considering when specifying for visibility-critical positions like entrance doorways. UV-stabilised PC body and ABS frame means the fitting holds its colour and finish over years of NZ sun exposure.

Specifications: 14W LED. Selectable colour temperature (3000K / 4000K / 5700K via DIP switch). CRI >80. PC body and ABS frame, UV stabilised. Interchangeable white and black frames included. Constant current LED driver included. Power factor 0.8. MacAdam Step 6 colour consistency. IP65. Operating temperature −25°C to +45°C. LED lifespan 50,000 hours @ L70 B10, Ta 25°C. 5-year warranty.

Dimensions: Vertical 120mm × 210mm × 63mm. Horizontal 210mm × 120mm × 61mm.

Available in: White or Black (interchangeable frames included).

Sensor variant available: the same horizontal fitting is also available with a built-in motion sensor — see Oval B IP65 LED Bulkhead with Sensor for hands-free entrance and soffit applications.
