Mini B IP65 LED Bulkhead Light — Full, Thirds or Half Pattern

A small-profile IP65 round bulkhead in die-cast aluminium with a black powder-coated finish — designed for compact exterior installations where standard bulkhead fittings would feel oversized. Useful for entranceways, garage exteriors, soffits, and stairway side-mounting where a 135mm fitting is the right scale.

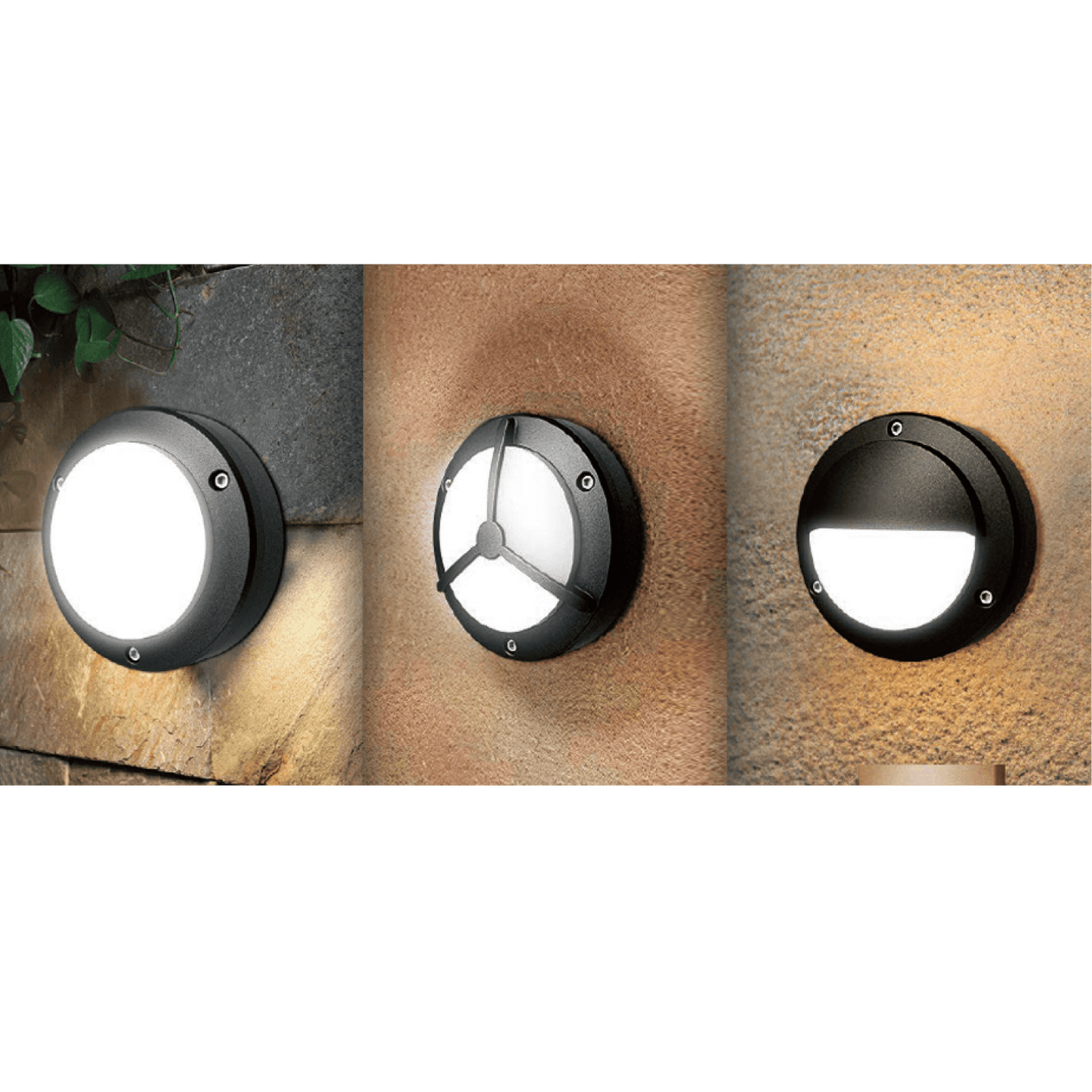

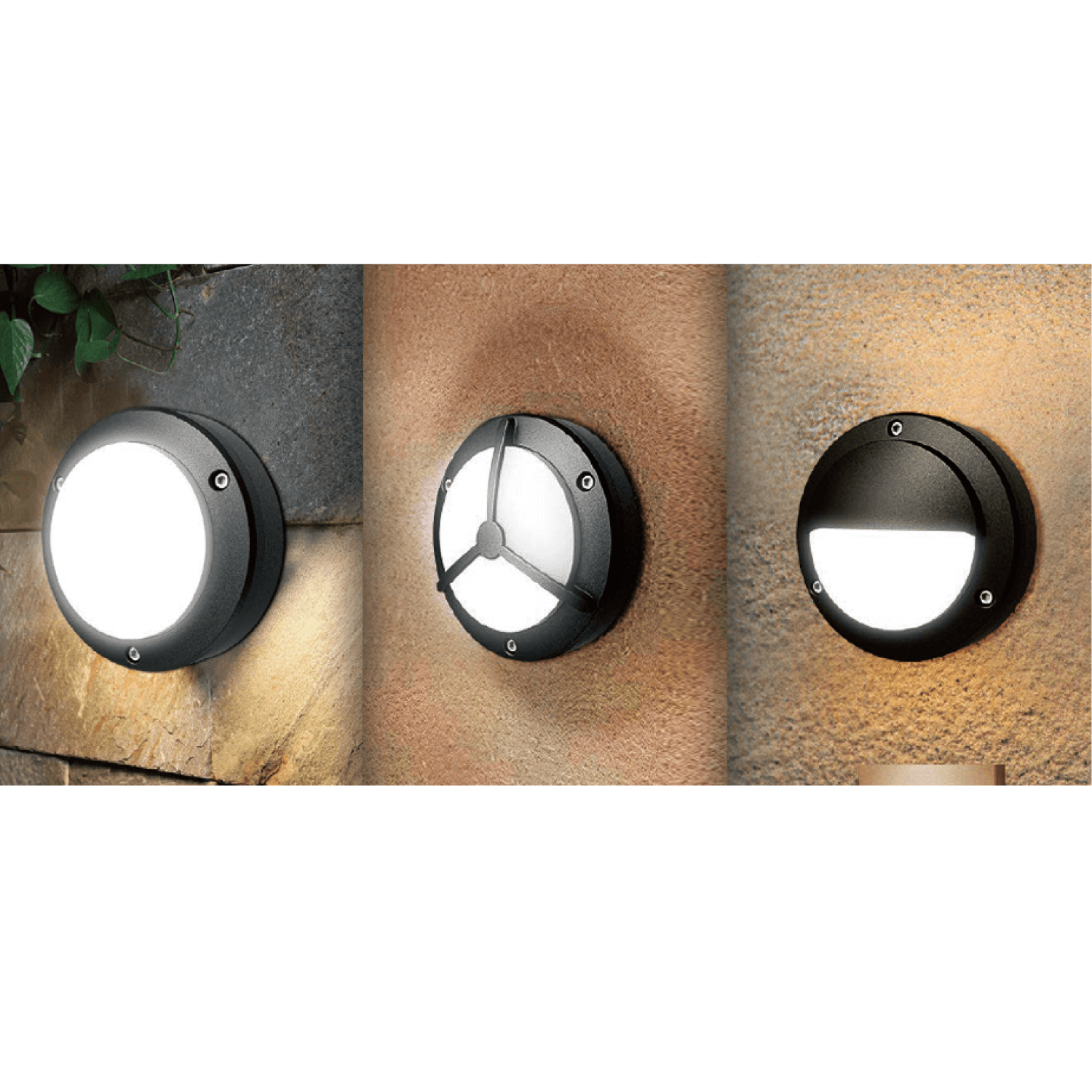

Three light-emission patterns allow the same form factor to deliver different visual effects:

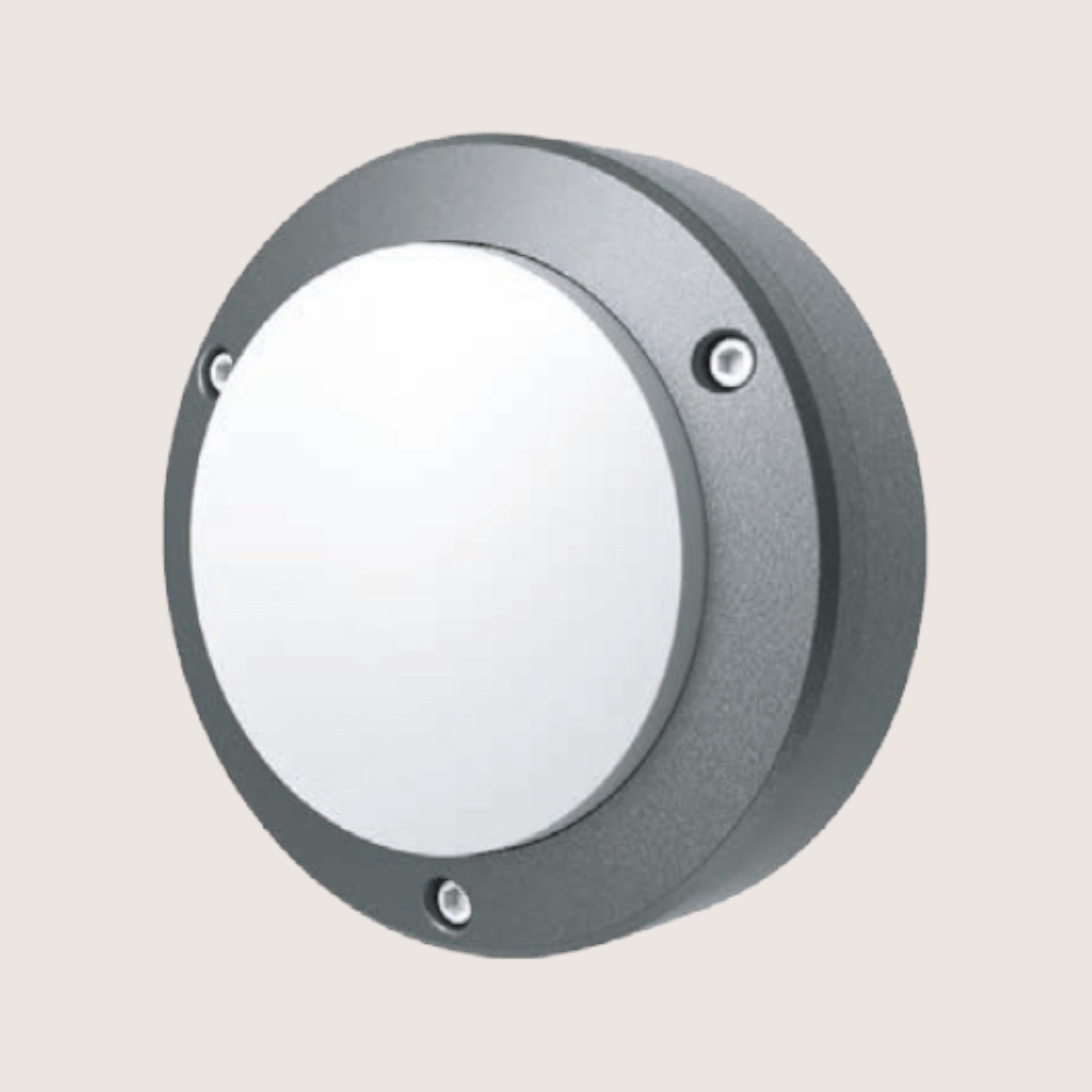

•       Full Pattern — even circular emission, 477 lumens. The standard option, full perimeter glow.

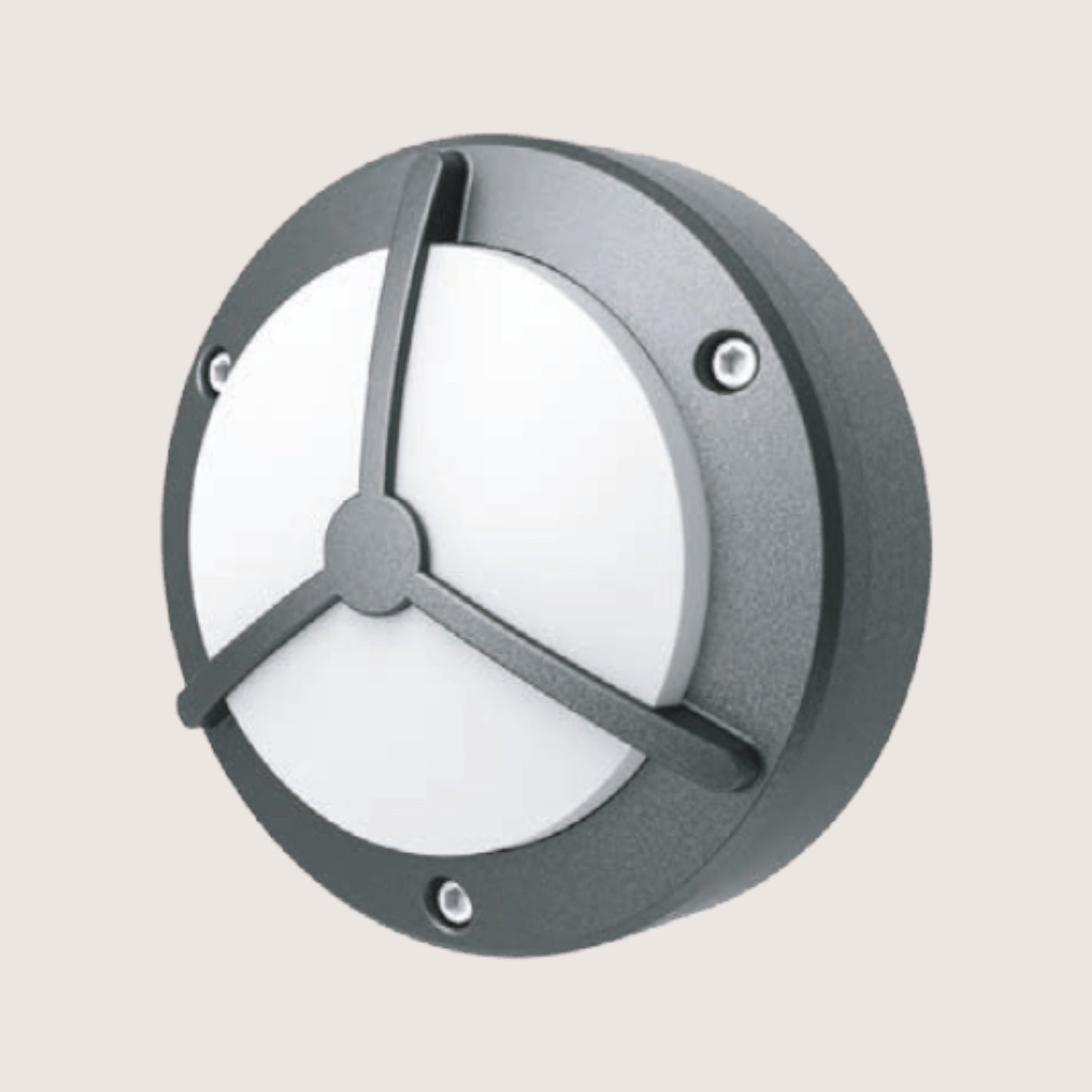

•       Thirds Pattern — emission through three segments, 406 lumens. Geometric detail that reads as more deliberate.

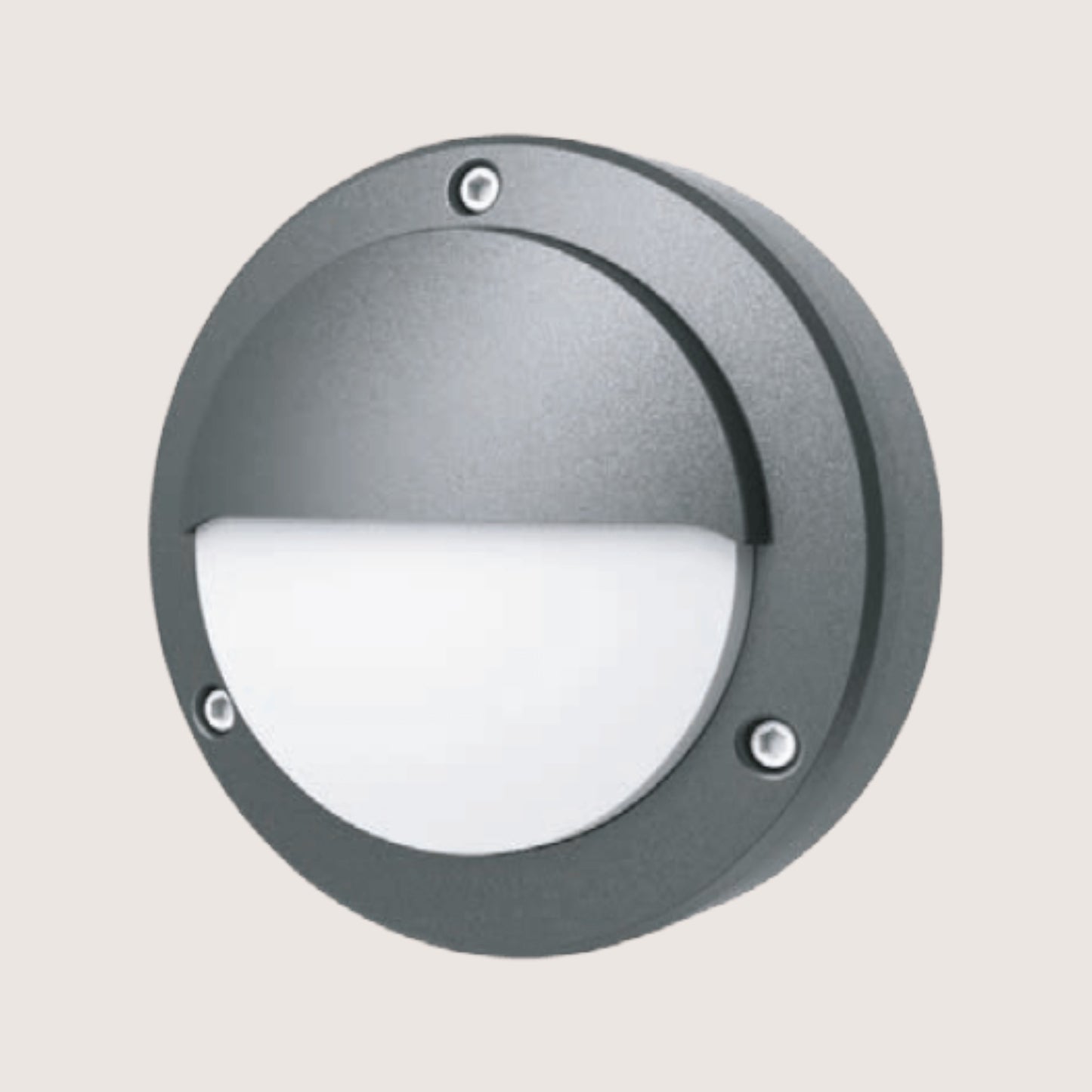

•       Half-and-Half Pattern — emission through opposing semi-circles, 267 lumens. Asymmetric detail for architectural feature use.

All three options share the same body, mounting and IP rating — the choice between them is purely aesthetic. Particularly well suited to contemporary exterior architecture where the bulkhead is a deliberate detail rather than utility hardware.

Specifications: 7W LED, 3000K warm white, CRI >80. 100° beam angle. Die-cast aluminium body with powder-coated finish, opal polycarbonate diffuser, stainless steel Allen screws, moulded silicon gasket. Constant current LED driver fitted. Non-dimmable. IP65 weatherproof, IK08 impact rated. Operating temperature −20°C to +40°C. LED lifespan 50,000 hours @ L70 B10, Ta 25°C. 3-year warranty.

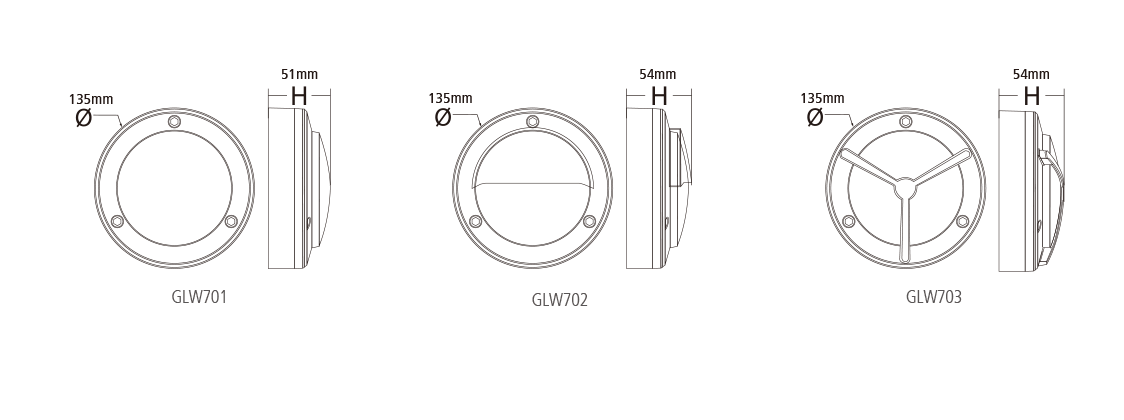

Dimensions: 135mm diameter. Full pattern 51mm deep, Thirds and Half patterns 54mm deep.

Available in: Black.

Free shipping NZ-wide.
